Test Equipment

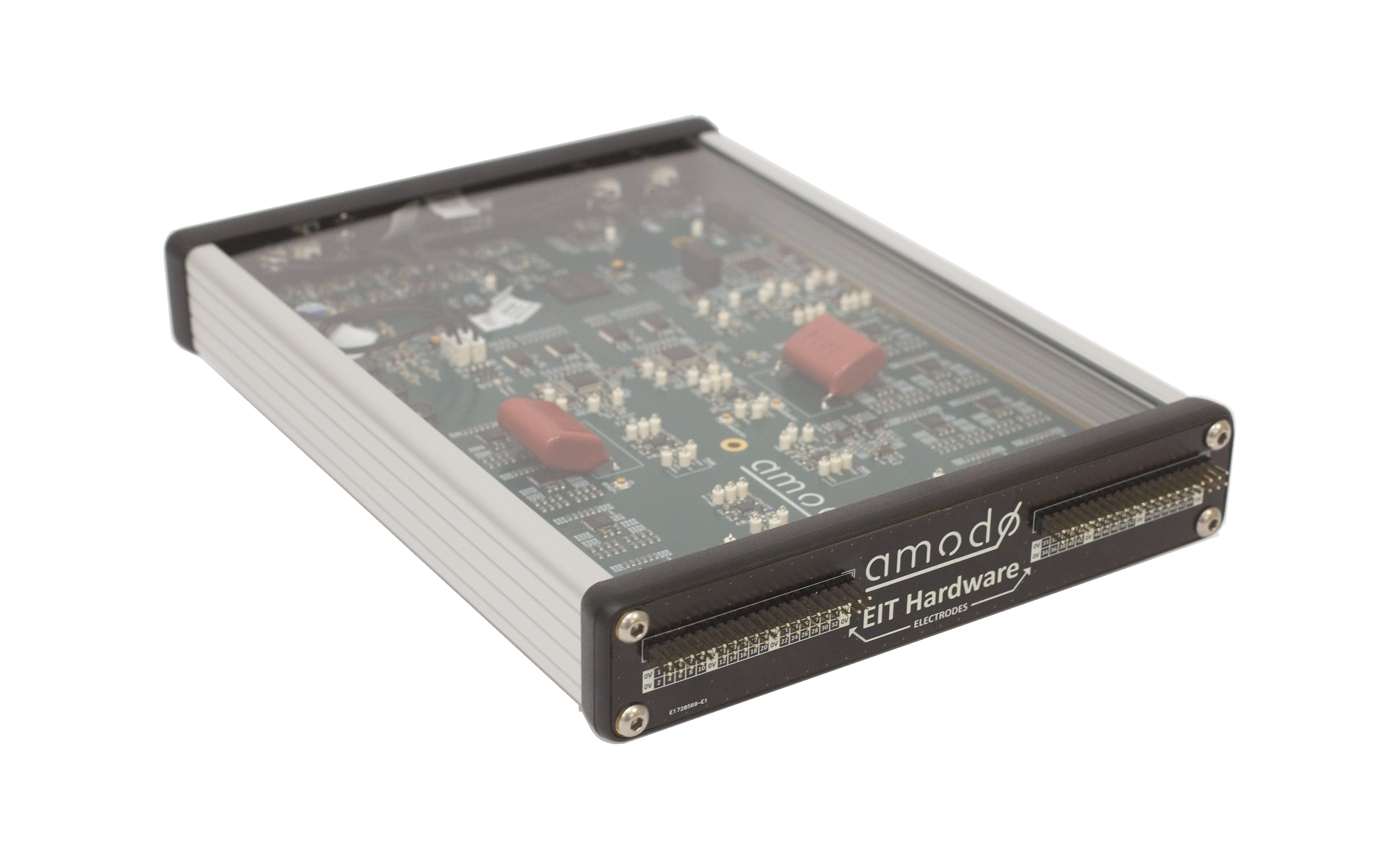

EITSYS
A configurable hardware platform for electrical impedance tomography with up to 64 electrodes, 1 kHz to 1 MHz excitation, and USB streaming for reconstruction.
Electrodes
Up to 64
Excitation
1 kHz – 1 MHz
Frame rate
Up to 14,000 fps
Interface
USB serial CLI
Test Equipment

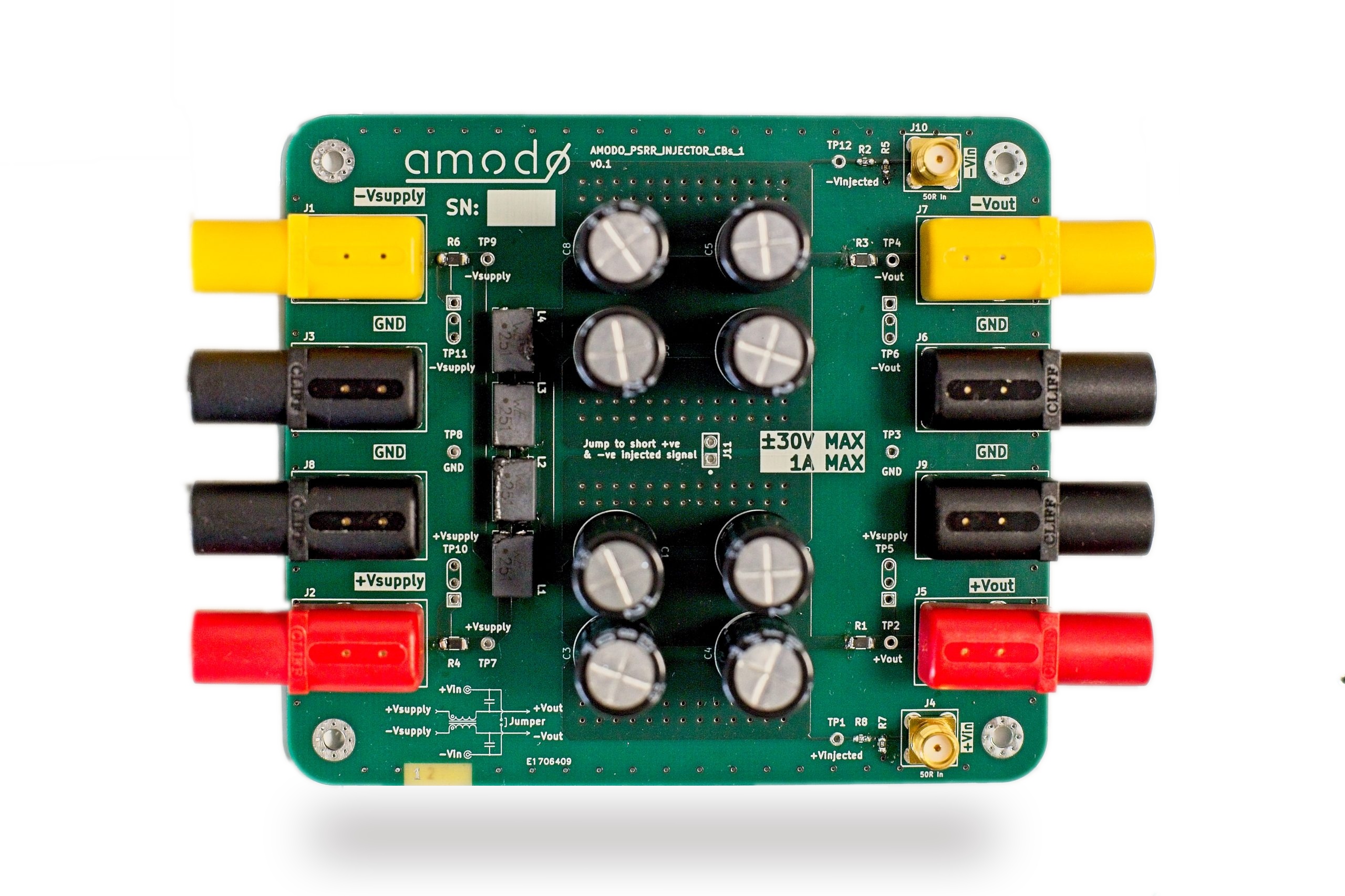

PSRR Injector Board
Inject a controlled AC ripple onto any clean DC supply and measure how well your circuit rejects it. Just add a function generator, a bench supply, and your favourite scope or network analyser — the board handles the rest.
Max voltage
±30 V
Flat band
100 Hz – 1 MHz+
Max current
1 A
License
Open Source
